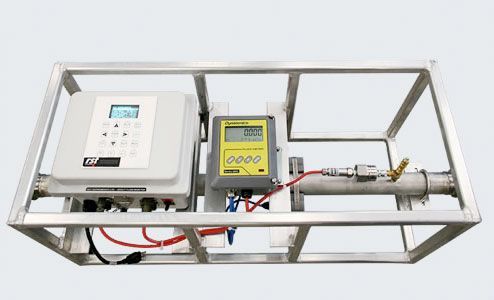

Permeation Grout Monitor

Overview
The RST Permeation Grout Monitor System provides operators and engineers near-real-time display of key grouting parameters to enhance the understanding of site conditions. It is invaluable in providing a permanent record of key grouting parameters for quality assurance, documented quantities and pressure readings. The datalogger incorporates a radio that transmits data to a portable computer on which an operator can visualize displays of real-time and historical injection pressure and flows. The user-friendly software allows for displaying the trending graphs of pressure and flow, as well as other graphs associated with grouting theories and practices.
Applications
Provides the operator with a display of key grouting parameters to enhance near-real-time understanding of the grouting process.
Provide a permanent record of key grouting parameters for quality assurance; documented quantities, accessible in standard software such as Microsoft® Excel
Features
- Non-invasive.
- Electromagnetic flowmeter.
- Low maintenance diaphragm seal for analog and digital pressure gauge protection.
- Digital flow and analog pressure on monitor.
- Near-real-time computer display.
- Customizable displayand recording options:
- – Pressure
- – Flow
- – Injected Volume
- – Site Specific Information
- – Apparent Lugeon
- – Penetrability Control
- – GIN
- Battery operated and rechargeable
- All displays in English or SI units.
- No cable – spread spectrum 900 MHz radio to computer base station.
- Unattended automatic monitoring if desired
